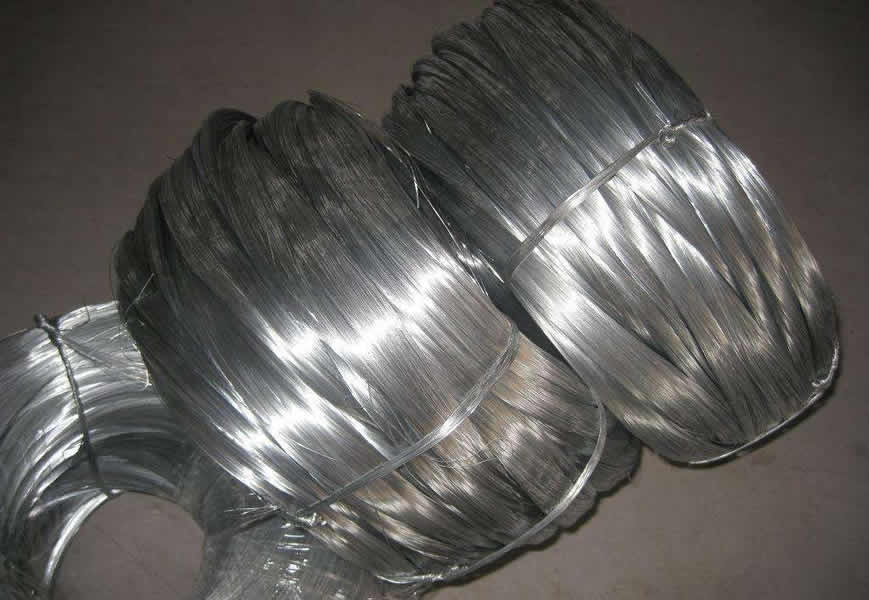

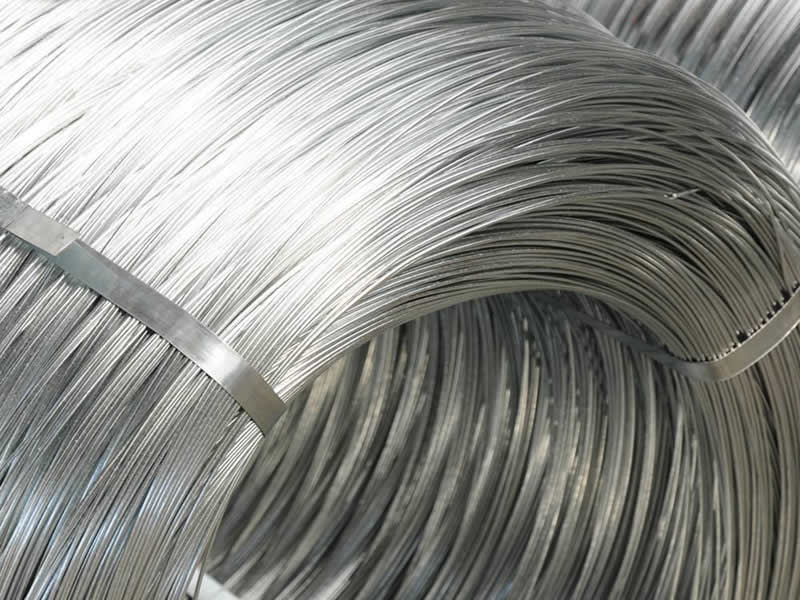

General Introduction: Electro galvanized wire is our featured product. It is made by means of wire drawing followed by heat treatment and electro galvanizing.
Materials: Carbon steel wire, mild steel wire.
Wire diameter: BWG8# to BWG16#.
We also offer thinner wire down to BWG5# or up to BWG28# upon customers specific order.

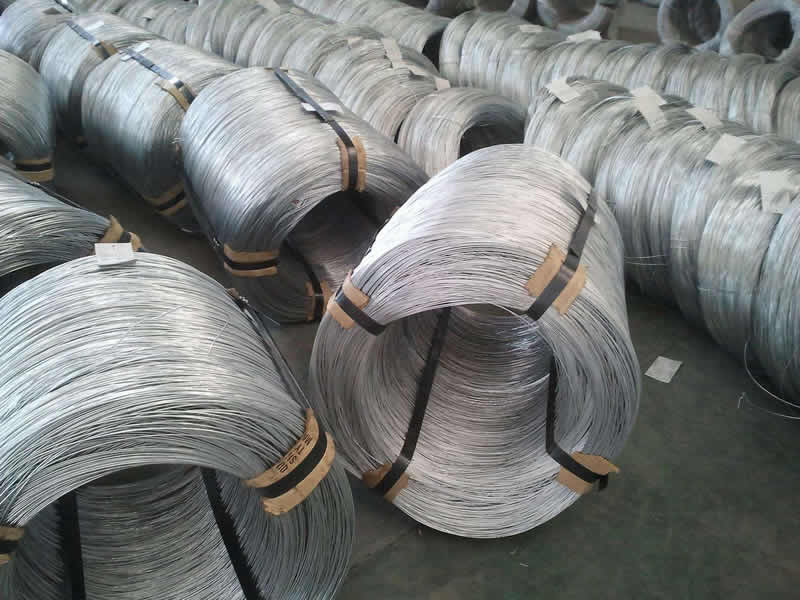

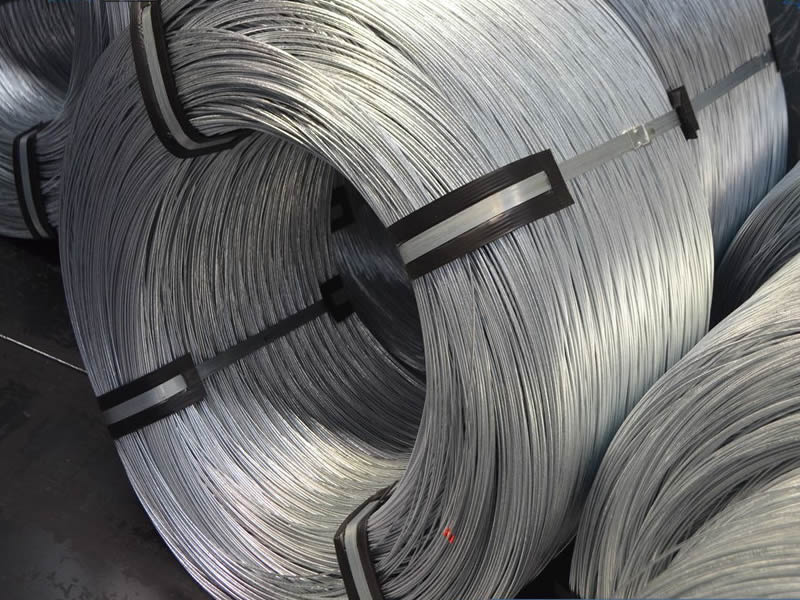

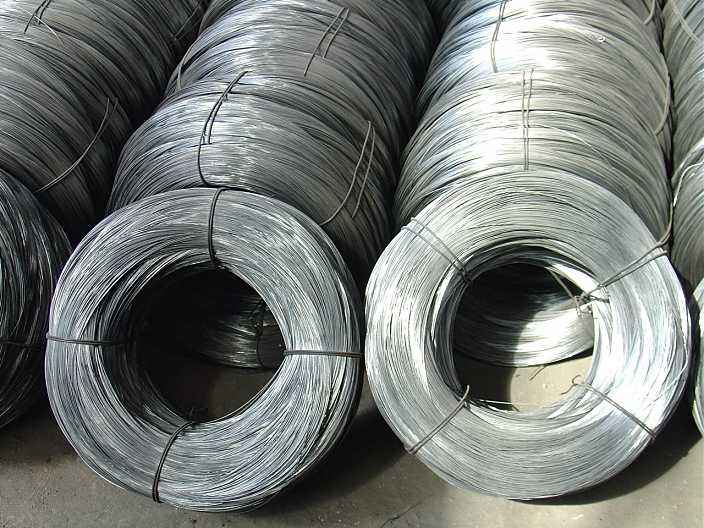

Packing: In coils or spools. Single coil package can be as small as 10 kg and up to maximum 1000 kg per coil.
Advantages: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.
Forms of Supply: Can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
Applications: This kind of industrial wire is mainly used in construction, making of wire nails and wire ropes, express way fencing, binding of flowers and wire mesh weaving.
Electro Galvanized Wire Technical Info:
| Serial Number | Wire Gauge | Wire Diameter (mm) | Standard Bundle Weight (Kg) |
| 1 | Wire Gauge 8# | 4.0 | 50 |
| 2 | Wire Gauge 10# | 3.5 | 50 |
| 3 | Wire Gauge 12# | 2.8 | 50 |
| 4 | Wire Gauge 14# | 2.2 | 50 |
| 5 | Wire Gauge 16# | 1.6 | 50.25 |
| 6 | Wire Gauge 18# | 1.2 | 25 |
| 7 | Wire Gauge 20# | 0.9 | 25 |
| 8 | Wire Gauge 22# | 0.7 | 10-25 |
