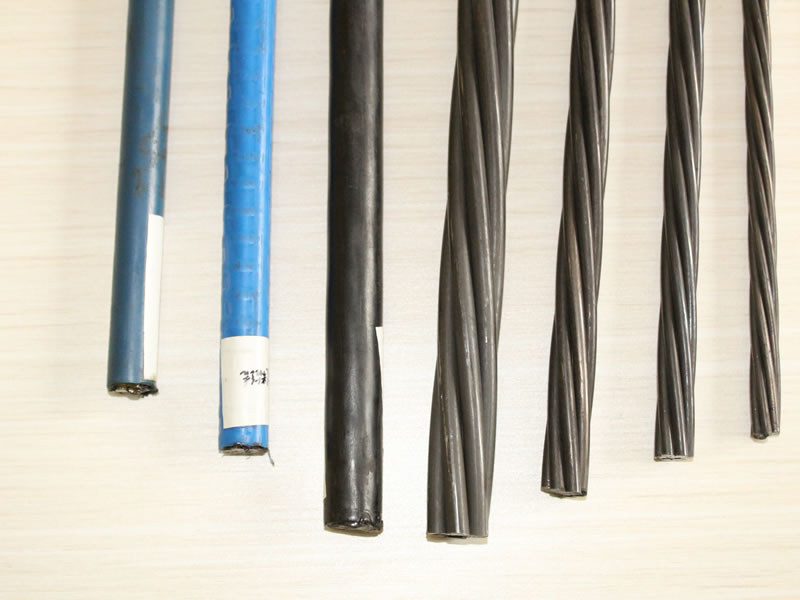

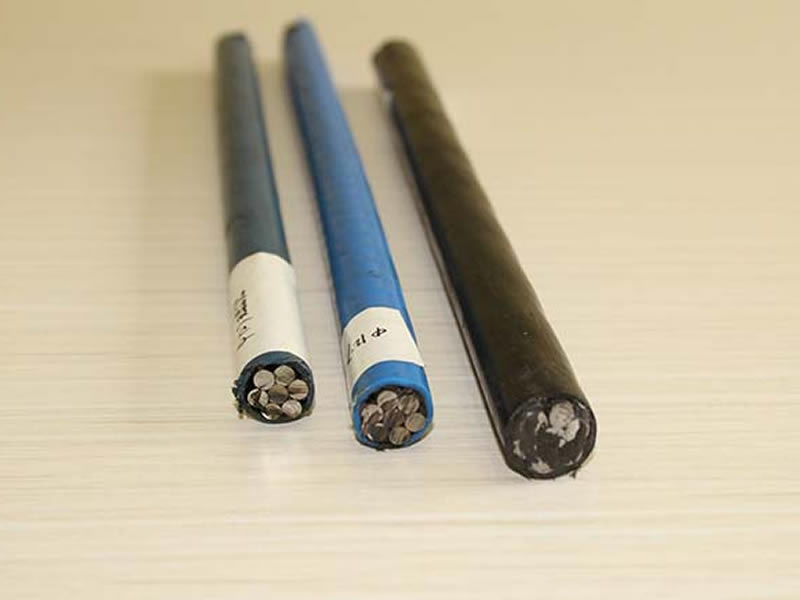

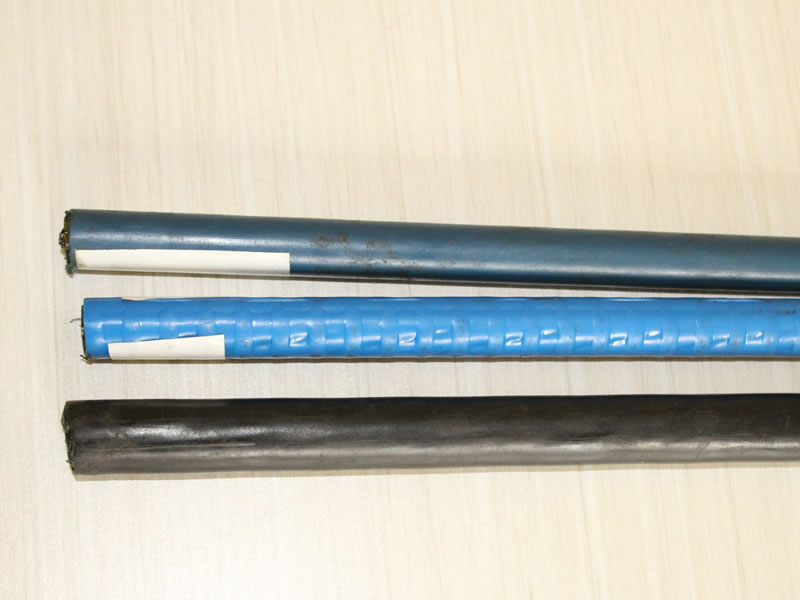

Unbonded PC Strand

Unbonded PC strand are mainly used for prestressed steel structure, a variety of rail and road bridges, factory plant, high-rise building, prestressed construction

Send Email

Grade: 270
Diameter: 9.53mm,12.5mm,12.7mm,15.24mm,15.7mm
Tensile Strength: 1770Mpa, 1860Mpa, 1960Mpa


Unbonded Prestressed Steel Strands are used for cast-in-place concrete and large-load prefabricated beams and other special structures for large-span buildings. It has advange that no need of room for future expasion, no need for grouting, easy construction, saved material, and random bending. Unbonded Prestressed Concrete Steel Strand have been widely used in major domestic engineering projects. Such as: Tianjin Airport, Chongqing Airport, Shijiazhuang Airport, Erdos Stadium and Sichuan, Yunnan, Lhasa and other major construction of hydropower projects.

Standard Unbonded pc strand Weight of oil (g/m)
Not less than		 Thickness of PE (mm)
Not less than		 Friction
factor
u		 Coefficient of effect on friction(K)
Nominal diameter
(mm)		 Area of section
(mm)		 Tensile strength
(MPa)
JG161-2004 9.50 54.8 1720
1860
1960		 32 0.8 0.04-0.10 0.003-0.004
12.7 98.7 1720
1860
1960		 43 1.0 0.04-0.10 0.003-0.004
15.24 140 1570
1670
1720
1860
1960		 50 1.0 0.04-0.10 0.003-0.004
15.7 150 1770
1860		 53 1.0 0.04-0.10 0.003-0.004
We are able to supply according to your specific requirements.
