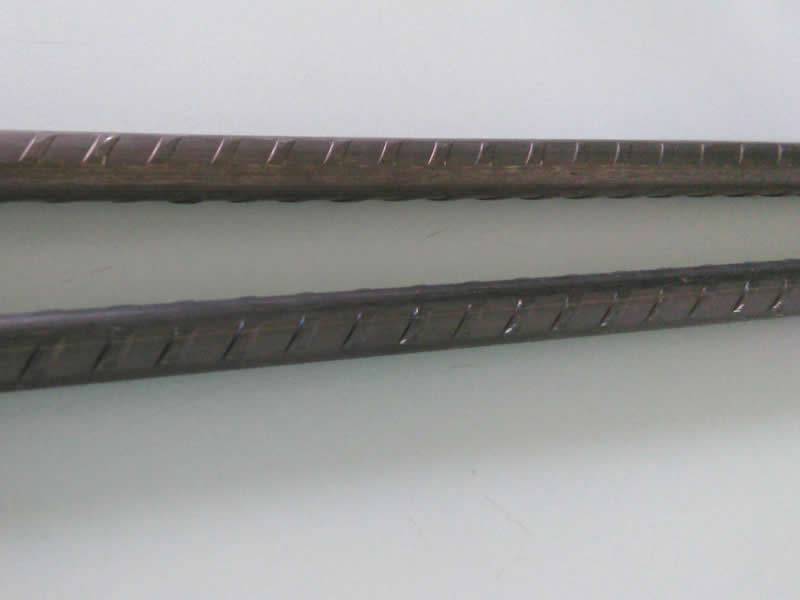

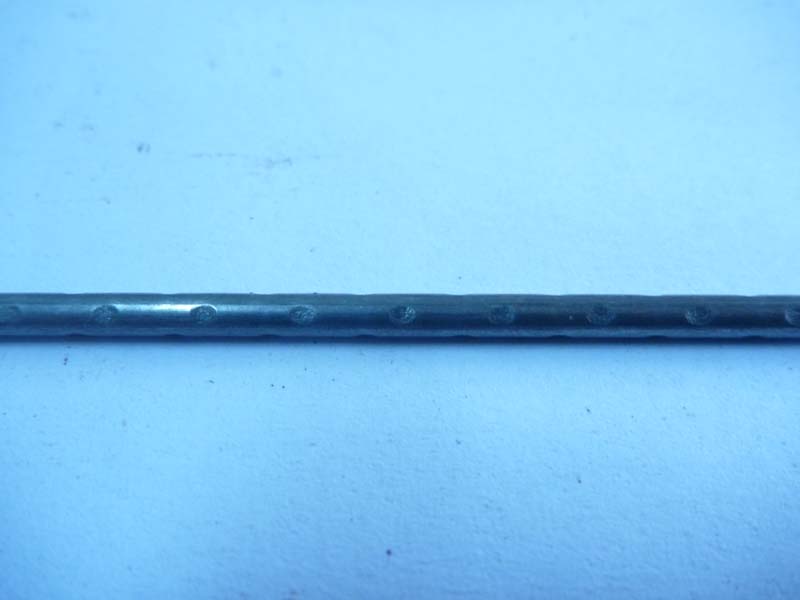

Indented PC Wire is a steel wire that uses cold rolling or cold drawing method to produce periodic changes in the surface of wire or convex lines. PC Wire surface indentation or flexure can increase the grip force whith concrete and can be used for prestressed concrete members.
The Indented PC wire will be chosen by different project requirement, and their available diameter including 4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm.
We could supply 2 sides, 3 sides and 4 sides low relaxation indented PC steel wire.
Raw Material: SWRH77B SWRH82B Wire Rod
Standard: ASTM A421
Tensile Strength: 1470Mpa ~ 1960Mpa
| Diameter (mm) | Range of nominal depths of indentation (mm) | Depth tolerance on chosen nominal depth (mm) | Length (mm) | Spacing (mm) | Tensile strength (N/mm2) | Weight (g/m) | Breaking load (KN) |
|---|---|---|---|---|---|---|---|
| 5.0 | 0.06 - 0.13 | ±0.03 | 3.5±0.5 | 5.5±0.5 | 1770 | 153.1 | 34.7 |
| 6.0 | 0.09 - 0.16 | ±0.04 | 5.0±0.5 | 8.0±0.5 | 1670 | 221.0 | 47.3 |
| 7.0 | 300.7 | 64.3 |
